Sturdax Industries provides a comprehensive range of lightning protection solutions engineered for reliable interception, monitoring and protection of critical structures. From conventional Single and Multi Spike arresters to advanced Early Streamer Emission technology, our solutions are designed for demanding industrial, infrastructure and building applications.

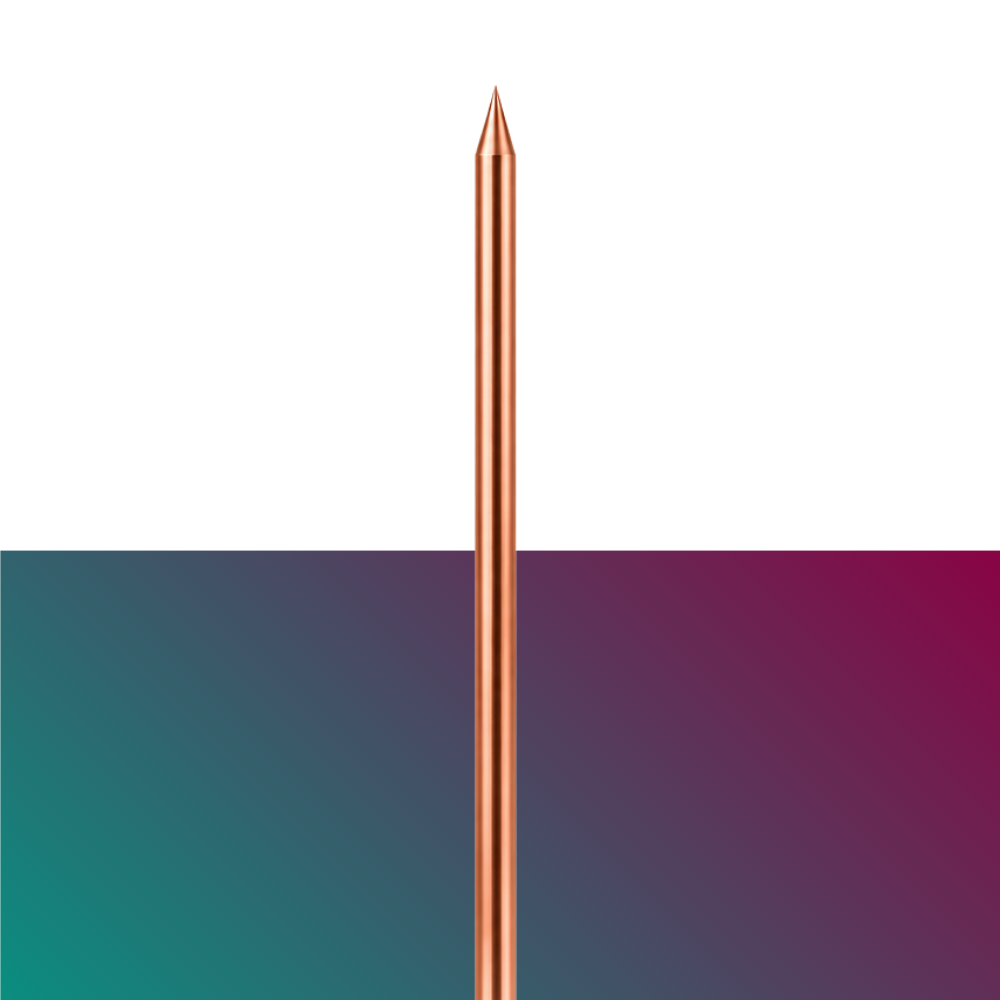

The Sturdax Single Spike Lightning Arrester provides reliable lightning interception using a conventional Franklin rod configuration. Its robust construction and copper-bonded finish make it suitable for a wide range of structures and installations.

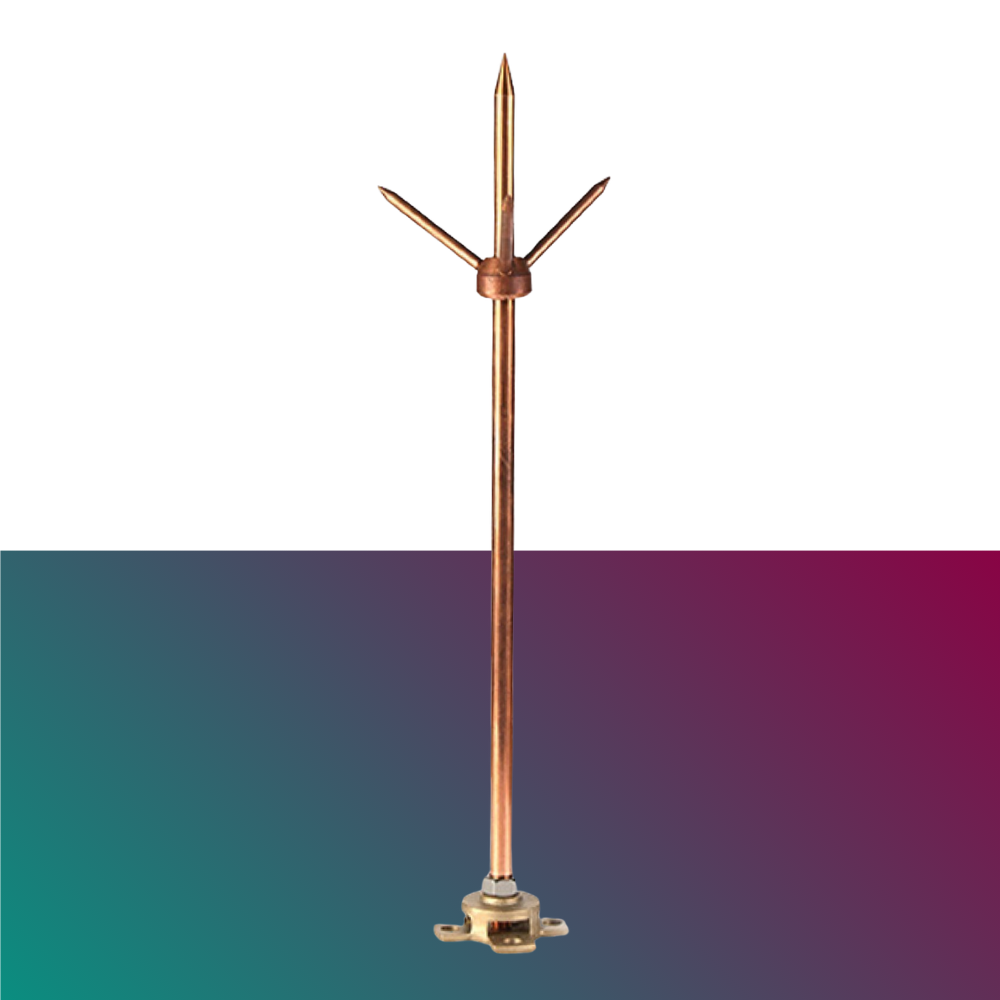

The Sturdax Multi Spike Lightning Arrester combines a central interception terminal with multiple branching spikes, providing a robust conventional solution for exposed structures and higher-risk installations.
| Feature | Single Spike | Multi Spike |
|---|---|---|
| Type | Conventional Franklin Rod | Multi-Point Conventional Arrester |
| Configuration | Single Primary Terminal | 1 Central + 3 or 4 Branching Spikes |
| Base Material | Low Carbon Steel / Copper / Aluminium | Steel / Copper / Gun Metal |
| Coating | 99.9% Electrolytic Copper | 99.9% Electrolytic Copper |
| Thickness | 50 / 100 / 250 Microns | 50 / 100 / 250 Microns |
| Diameter | 12 / 14.5 / 16 / 17.2 / 20 mm | 14.5 / 16 / 17.2 / 25 mm |
| Length | 1000 / 1200 mm | 1000 / 1200 mm |
| Application | Residential / Structures / Solar | High-Risk / Telecom / Industrial |
| Compliance | IEC 62305 / AS 1768 / NFPA 780 | IEC 62305 / AS 1768 / NFPA 780 |

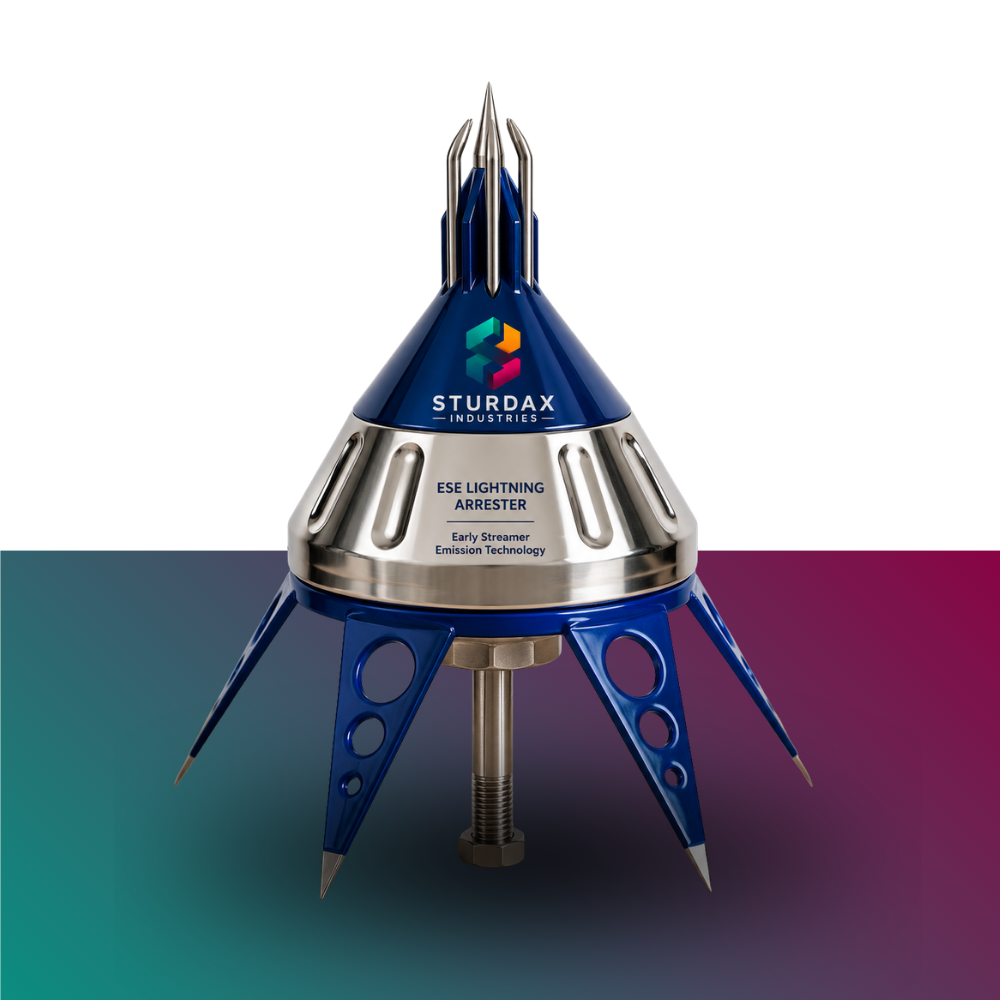

The Sturdax SE-250 Early Streamer Emission Lightning Arrester is engineered to initiate an upward leader for advanced lightning interception and extended protection coverage.

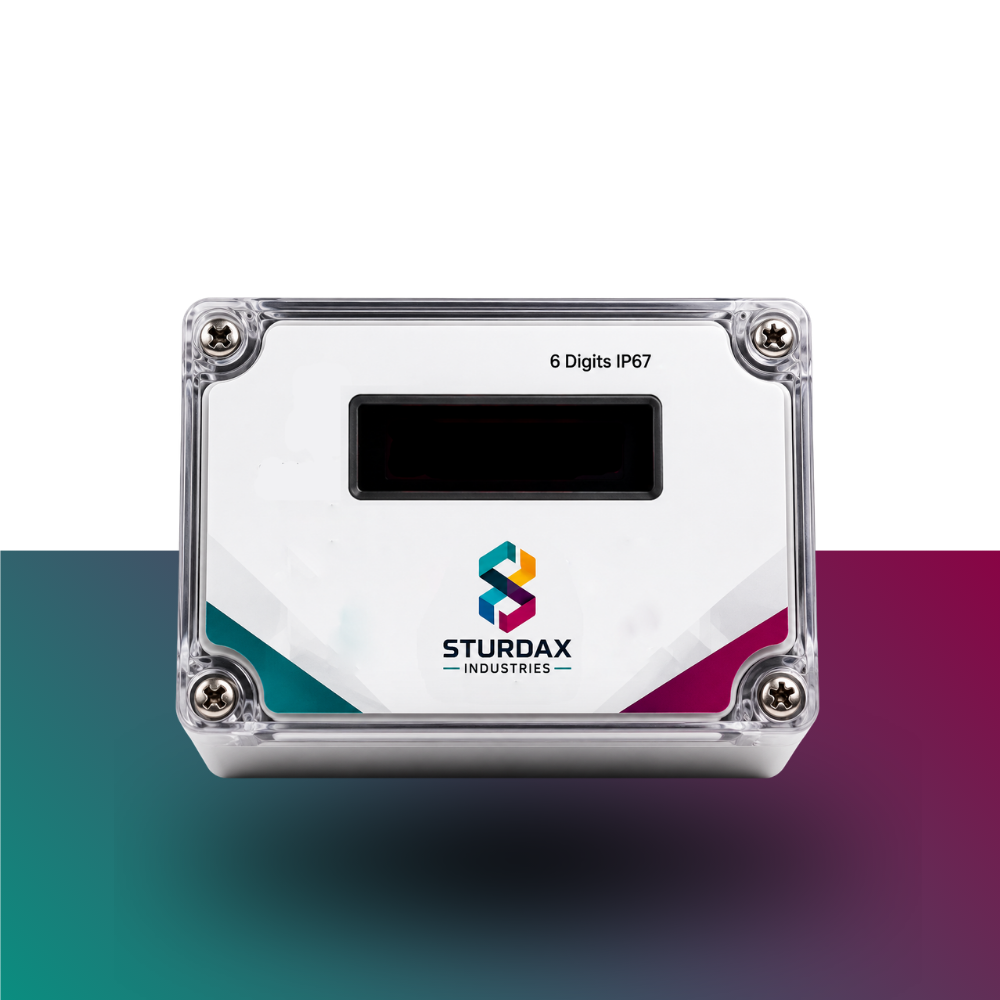

The Sturdax Lightning Strike Counter records lightning discharge events passing through the lightning protection system, supporting inspection, maintenance and compliance documentation.
Sturdax lightning protection solutions are suited to commercial, industrial and infrastructure projects requiring dependable lightning interception, protection and monitoring.
Share your project specifications with Sturdax Industries for product selection, technical support and quotation.
