Earthing Solutions

Reliable Grounding for Safer Installations.

Sturdax grounding grids are engineered to provide an efficient path for fault current dissipation while helping maintain safer touch and step potential levels around electrical installations.

Available in copper and hot-dip galvanised configurations, these grid systems are suited to substations, industrial facilities, telecom infrastructure and power distribution applications where dependable earthing performance and long-term durability are essential.

Low-Resistance Earthing Efficient Current Dissipation Project-Specific Sizes

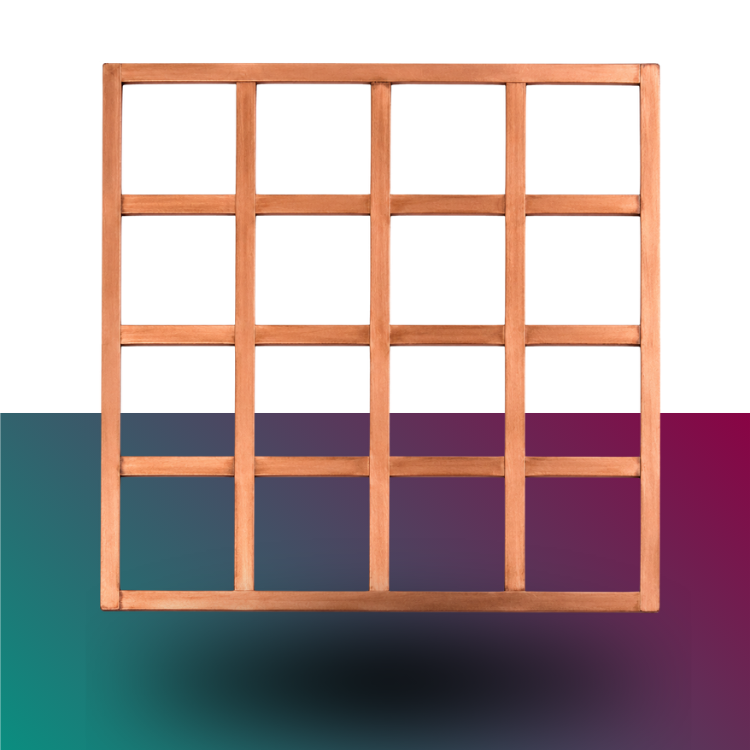

Copper Earthing Grid

Copper Grounding Grid

Copper grounding grids provide an effective and economical alternative to solid copper plates for creating low-resistance earthing systems. The lattice construction offers excellent current dissipation, improved potential grading, and enhanced personnel safety by reducing touch and step voltages around electrical installations.

L x W	CU Strip Size	Grid Configuration	Approx. Weight
600 x 600 mm	25 x 3 mm	4 x 4 Grid	4 kg
900 x 900 mm	25 x 3 mm	4 x 4 Grid	7.2 kg
Custom Sizes	As Required	Project Specific	On Request

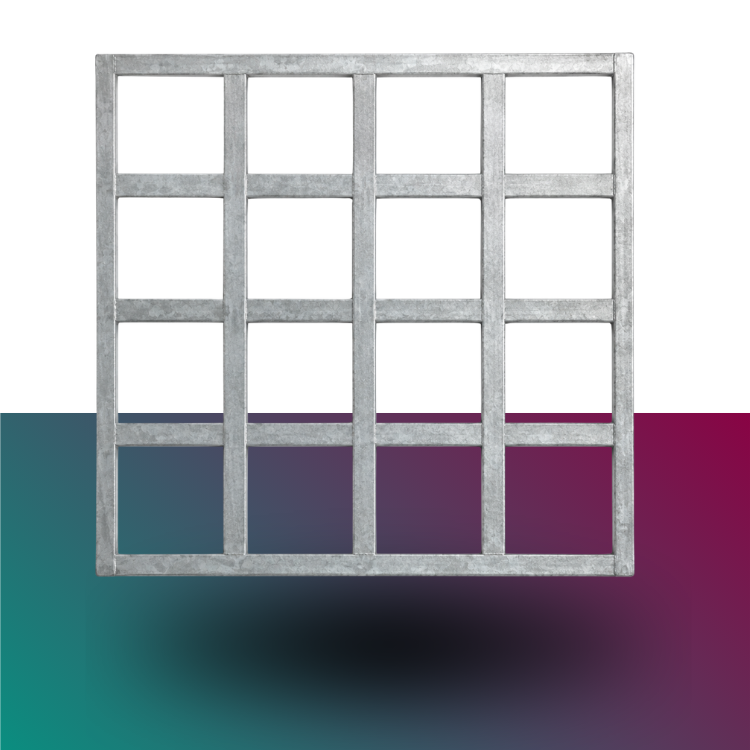

HDGI Earthing Grid

HDGI Grounding Grid

Hot-Dip Galvanised Grounding Grids provide a durable and cost-effective earthing solution for substations, industrial facilities, telecom sites, and power distribution networks. The lattice design ensures efficient fault current dissipation while minimizing touch and step potential hazards. The heavy-duty hot-dip galvanised coating delivers long-term corrosion protection in a wide range of soil conditions.

L x W (mm)	CU Strip Size	Grid Configuration	Approx. Weight
600 x 600 mm	25 x 3 mm	4 x 4 Grid	3.6 kg
900 x 900 mm	25 x 3 mm	4 x 4 Grid	6.5 kg
Custom Sizes	As Required	Project Specific	On Request
